Omni Vital Sign Patient Monitor, with Infrared Thermometer

Versatility: Our monitor is designed for use across a wide range of patient anatomies, making it suitable for adults and pediatric patients.

Precision Monitoring: The monitor provides precise and reliable measurements of multiple vital signs, including blood pressure, oxygen saturation (SpO2), heart rate, and temperature.

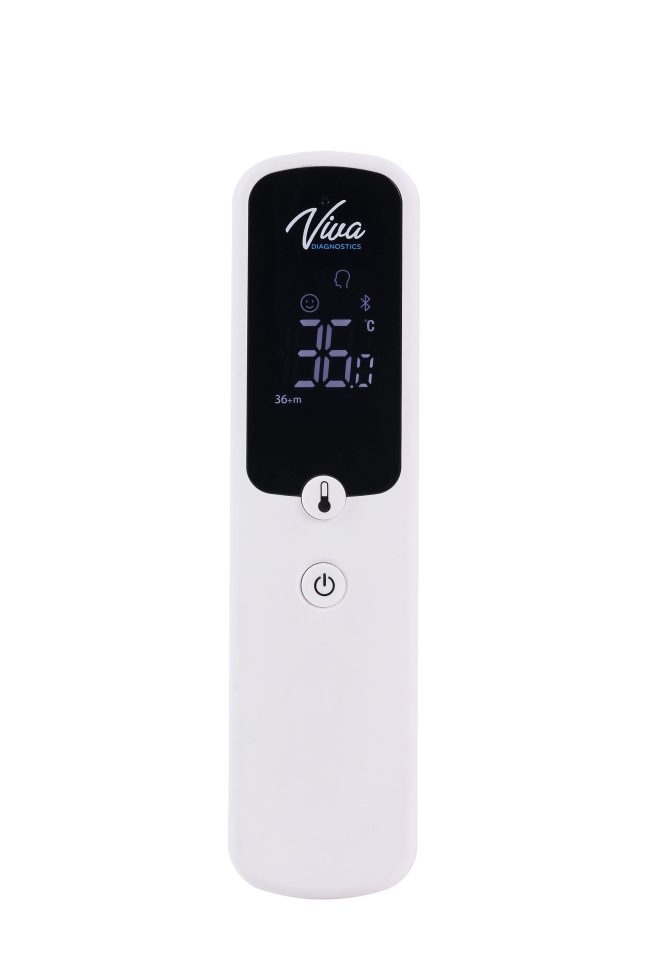

Non-Invasive Temperature Readings: Its built-in infrared thermometer allows for quick, contactless temperature measurements, reducing patient discomfort and minimizing the risk of cross-contamination.

Comprehensive Vital Sign Data: The integrated SpO2 monitor tracks continuous oxygen saturation and heart rate, providing real-time data essential for managing respiratory and cardiovascular health.

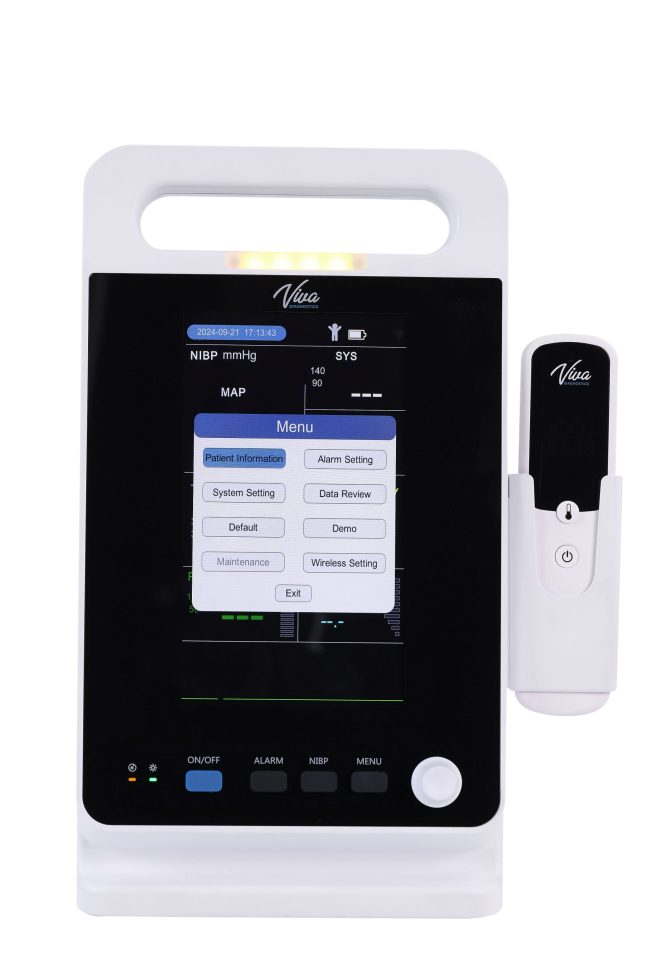

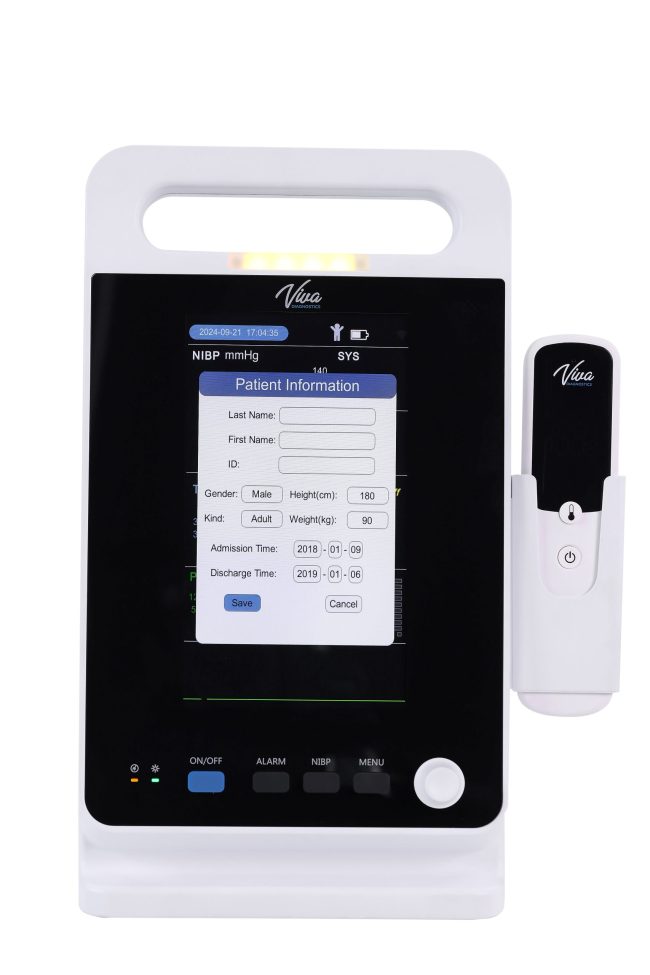

Clear Visibility: The 7-inch TFT display provides clear, easy-to-read measurements, enhancing clinician usability in critical care settings.

Perfusion Index: The monitor includes a Perfusion Index, which helps caregivers identify the best location for obtaining accurate readings.

Customizable Measurement Modes: The monitor offers both manual and customizable non-invasive blood pressure (NIBP) modes, ensuring flexibility for various clinical needs.

Storage: The device can store up to 10,000 data sets in its internal memory, streamlining record-keeping and allowing quick access to historical information.

Long-Lasting: Powered by a high-capacity battery that lasts up to 8 hours, the device is ideal for mobile care units and environments where uninterrupted monitoring is critical.

Portability: Weighing only 4.41 pounds, the monitor is lightweight for transport using the integrated carry handle.

Certifications: The device is both FDA and CE-certified, ensuring strict safety and quality standards are adhered to.

Advanced Connectivity: The monitor supports WiFi and WLAN, allowing seamless integration with central monitoring software, enabling remote health monitoring and data management.

Extended Features: In addition to vital signs, the monitor supports ETCO2 measurement and advanced body temperature monitoring.

Add to Wishlist
Add to Wishlist

Add to Wishlist
Add to Wishlist
Compare
SKU: ADIME913-M-1
Category:

Attention California Residences: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

Description

The Omni Vital Sign Patient Monitor is meticulously designed for exceptional versatility, delivering precise and reliable measurements across a broad spectrum of patient anatomies. This makes it an invaluable tool in both adult and pediatric care. In addition to its advanced blood pressure monitoring capabilities, the device features an infrared thermometer for non-invasive, rapid temperature assessments, a robust SpO2 monitor for continuous oxygen saturation tracking, and heart rate monitoring. These integrated functions provide clinicians with a comprehensive overview of vital signs, enabling timely and informed decisions in critical care settings.

The monitor’s large 7-inch TFT display ensures clear visibility of all measurements, while the Perfusion Index guides caregivers to the best location for accurate readings. The device offers manual and customizable NIBP measurement modes and easily accommodates various clinical applications. To support efficient patient management, its substantial internal memory can store up to 10,000 data sets, allowing for streamlined record-keeping and quick access to historical information. Powered by a long-lasting, 8-hour high-capacity battery, the monitor operates seamlessly across various healthcare environments, from community hospitals and nursing homes to small clinics and mobile care units.

The infrared thermometer enables swift, contactless temperature readings, minimizing patient discomfort and reducing the risk of cross-contamination. This feature is precious in fast-paced settings such as emergency rooms and pediatric units, where speed and hygiene are paramount. Simultaneously, the SpO2 monitor delivers precise, real-time data on oxygen saturation and heart rate, essential for assessing respiratory function and cardiovascular health. These metrics are especially critical when managing conditions like chronic obstructive pulmonary disease, heart failure, or acute respiratory distress syndrome, where continuous monitoring is vital.

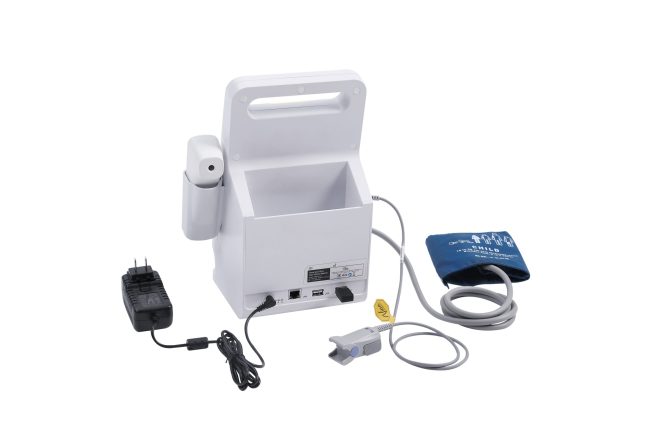

We engineered the monitor for mobility and convenience. It is equipped with a secure holding bracket and an integrated carry handle, allowing it to be easily transported between patient rooms or care stations without interrupting treatment. At just 4.41 pounds, it is lightweight and portable, making it ideal for healthcare professionals on the move. Both FDA and CE-certified, the device features a reliable power setup with a 5.91-inch power cord and a built-in lithium battery, ensuring consistent performance whether plugged in or running on battery power.

Beyond its core functions, it also supports ETCO2 measurement and body temperature monitoring while offering advanced connectivity options such as WiFi and WLAN. These features allow seamless integration with central monitoring software, making it easier for clinicians to manage patient data in hospital rounds, first aid situations, or remote health monitoring and diagnosis. With its comprehensive monitoring capabilities, portability, and advanced connectivity, the Omni Vital Sign Patient Monitor is an essential, versatile solution for delivering precise and efficient patient care across various clinical environments.

Specs

Included: Adult and Pediatric Cuff, SpO2 Sensor, Infrared Thermometer, and Thermometer Bracket.

Certifications: FDA-certified, CE-certified



Thermometer:

Thermometer Net Weight: 0.01 lbs.

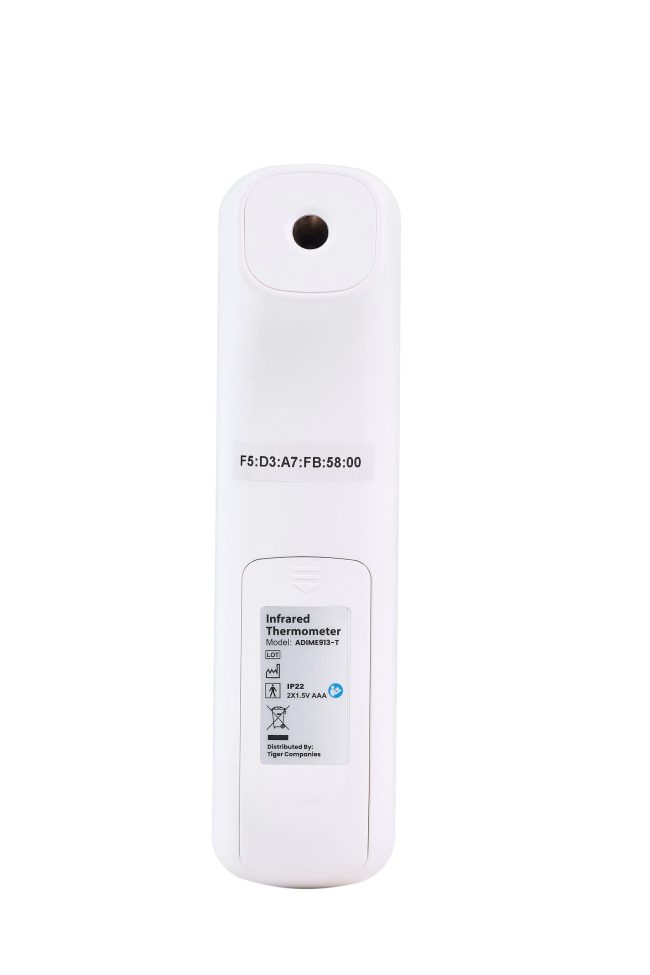

Thermometer Type: Infrared

Measurement Method: Forehead

Measurement Range: 89.6°F – 109.22°F

Compatible Accessory: Included Bracket

Mounting Bracket Net Weight: .022 lbs.

Mounting Bracket Net Dimensions: 3.5” H x 1.38” W x 1.50” L



SpO2:

SpO2 Net Weight: 0.11 lbs.

SpO2 Net Dimensions: 0.6” H x 0.86” x 35.4” L

Pulse Rate Accuracy: ±2bpm or ±2%

Pulse Rate Range: Adult: 30 to 200 bpm/Pediatric: 30 to 200 bpm

SpO2 Measurement Accuracy: ±2%

SpO2 Measurement Range: 1 to 100%

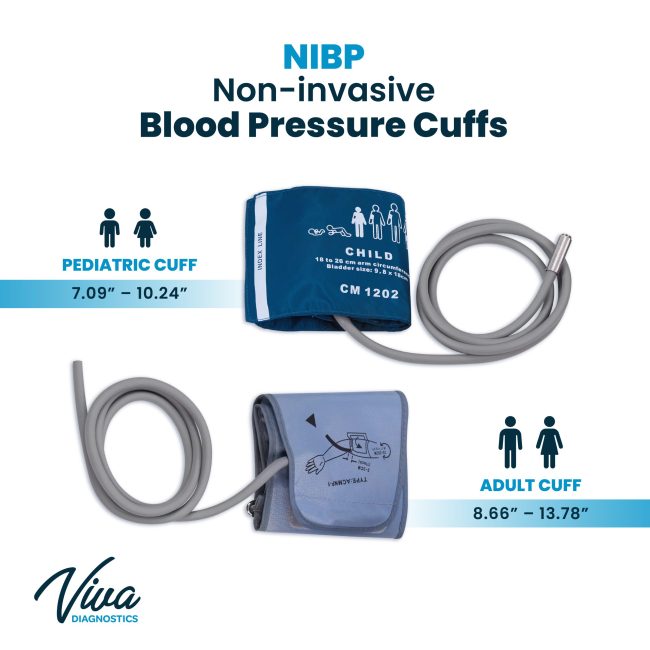

Cuffs:

Type: Metal Connect BP Cuff

Sizes: Adult and Pediatric

Operation: Auto Inflate/Deflate

BP Determination Time: At least 30 seconds.

Accuracy: ±3 mmHg   Maximum standard deviation: 8 mmHg

Environmental Humidity: Below 93% noncondensing

Safe Operation Temperature: -4°F to 131°F



Adult Cuff Weight: 0.31 lbs.

Adult Cuff Dimensions: 1.57” H x 4.3” W x 5.9” L

Adult Cuff Size Range: 8.66” – 13.78”

Diastolic Range: 10 to 285 mmHg

Systolic Range: 10 to 285 mmHg

Arterial Mean Pressure Range: 280 mmHg



Pediatric Cuff Size: 0.27 lbs.

Pediatric Cuff Dimensions: 1.57” H x 3.74” W x 5.7” L

Pediatric Cuff Size Range: 7.09” – 10.24”

Diastolic Range: 15 to 295 mmHg

Diastolic Range: 15 to 295 mmHg

Arterial Mean Pressure Range: 280 mmHg

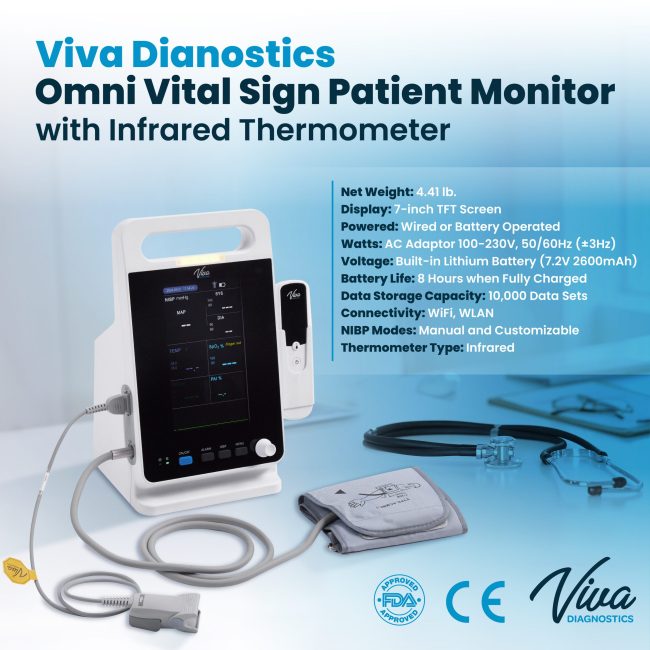

Monitor:

Battery Duration: 5-8 hours depending on usage

Monitor Display: 7-inch TFT Screen

Monitor and Thermometer Color: White

Monitor Net Weight: 4.41 lb.

Monitor Net Dimensions:  11.5” H x 6.61” W x 6” D

Watts: AC Adaptor: AC 100-230V, 50/60Hz(±3Hz)

Voltage: Built-in Lithium Battery (7.2V 2600mAh)

Power Cord Length: 5.91”

Powered: Wired or Battery Operated

Battery Life: Fully Charged: 8 Hours

Data Storage Capacity: 10,000 Data Sets

Connectivity: WiFi, WLAN

Additional Monitoring Capabilities: ETCO2, Body Temperature

Measurement Modes: Manual and Customizable NIBP Modes
