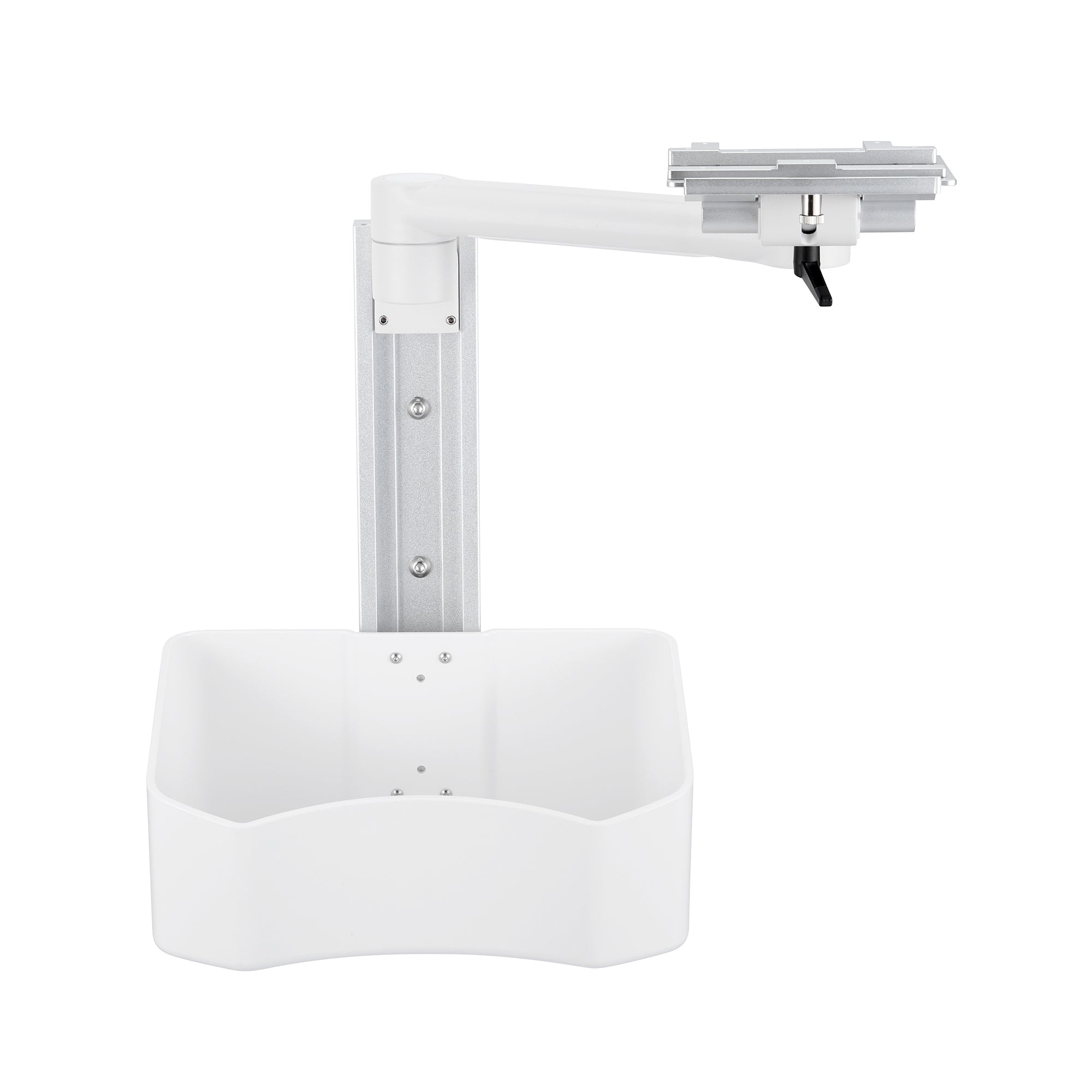

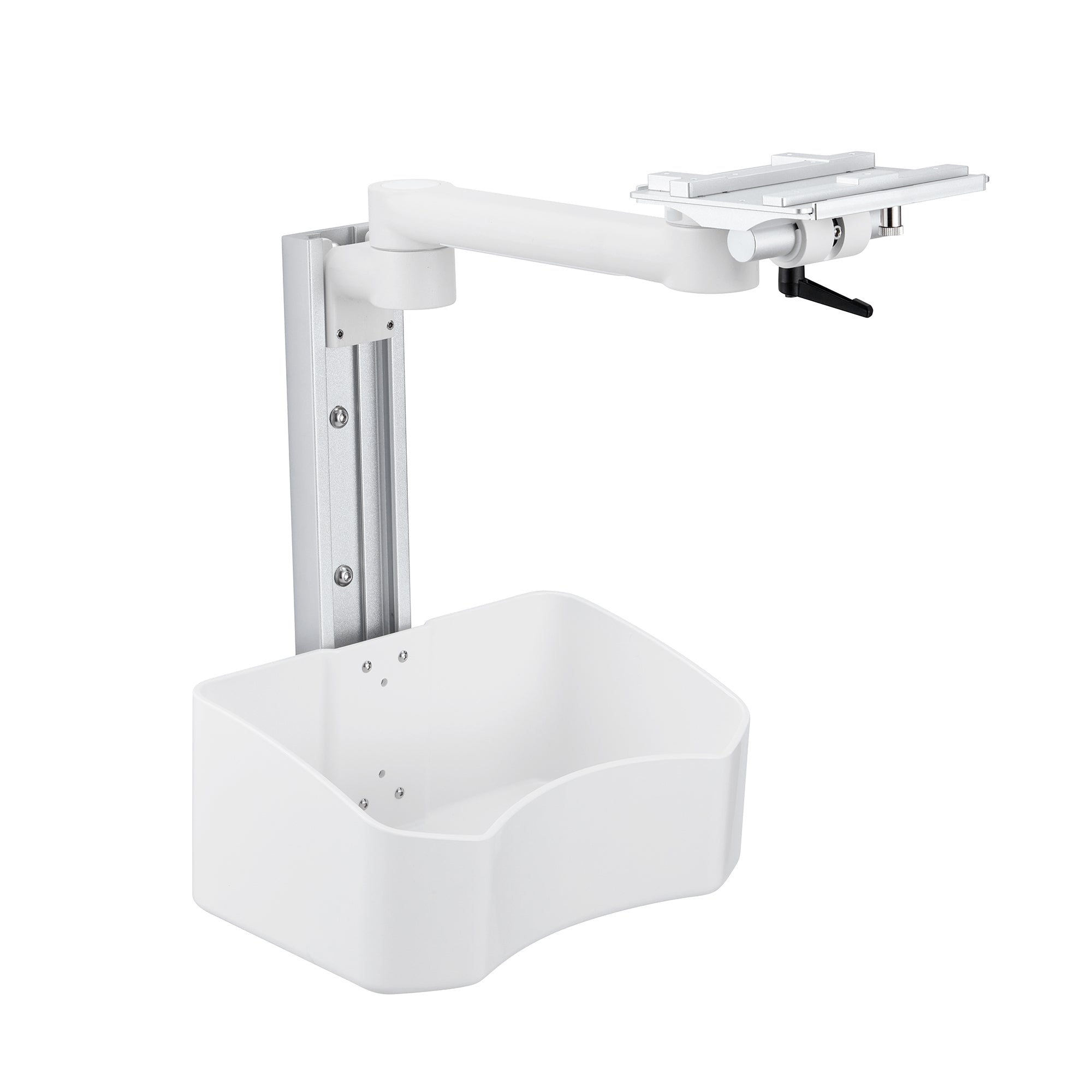

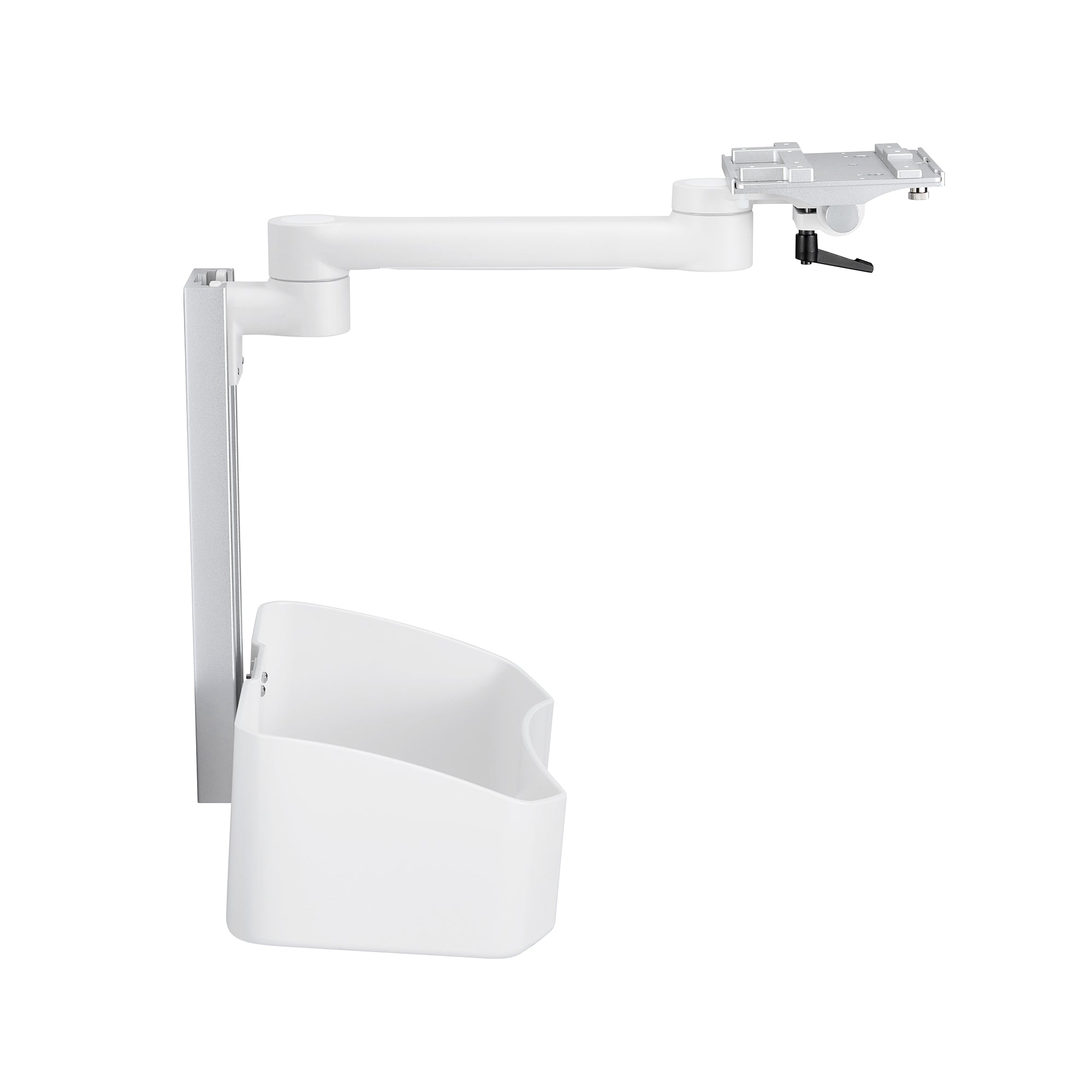

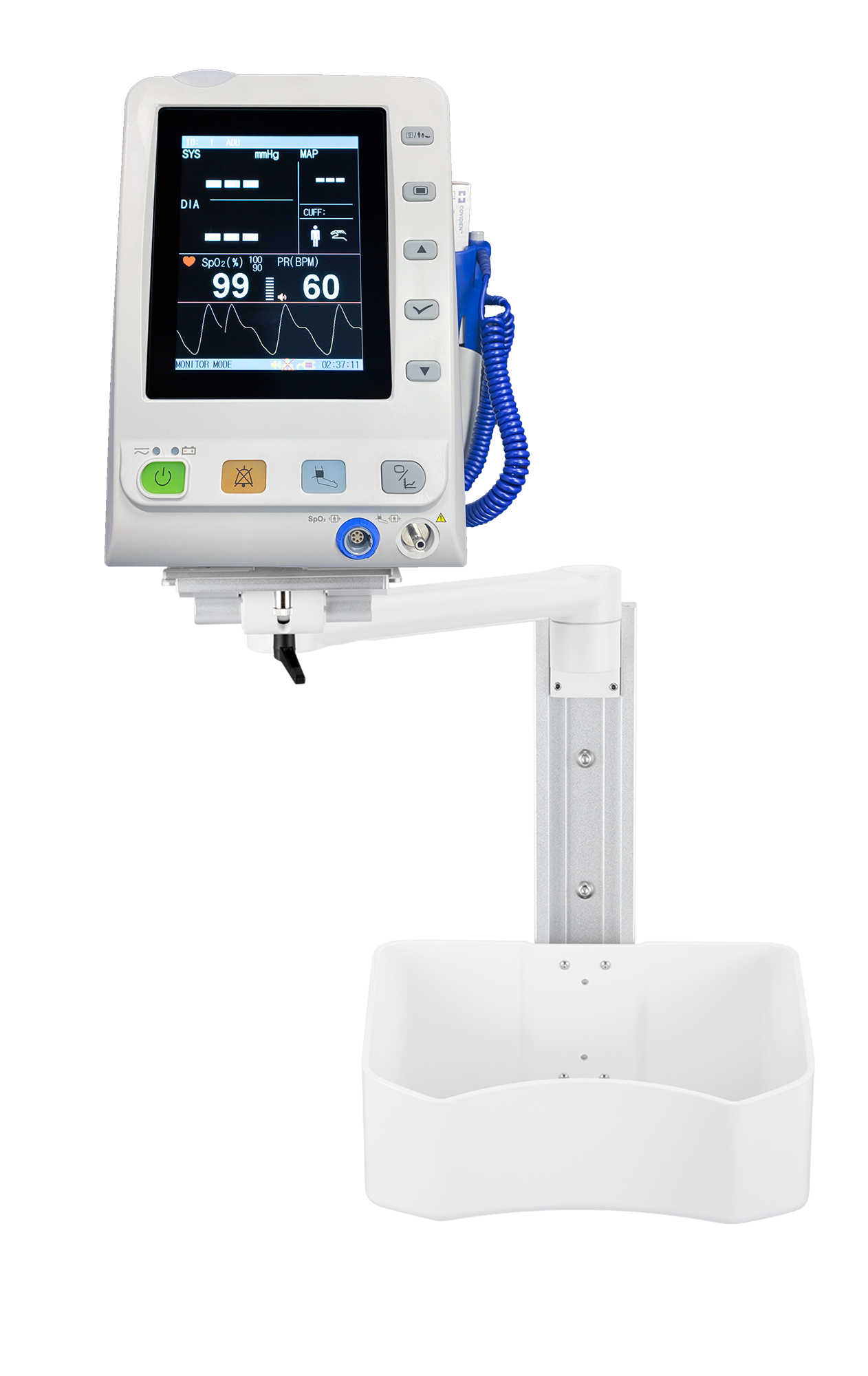

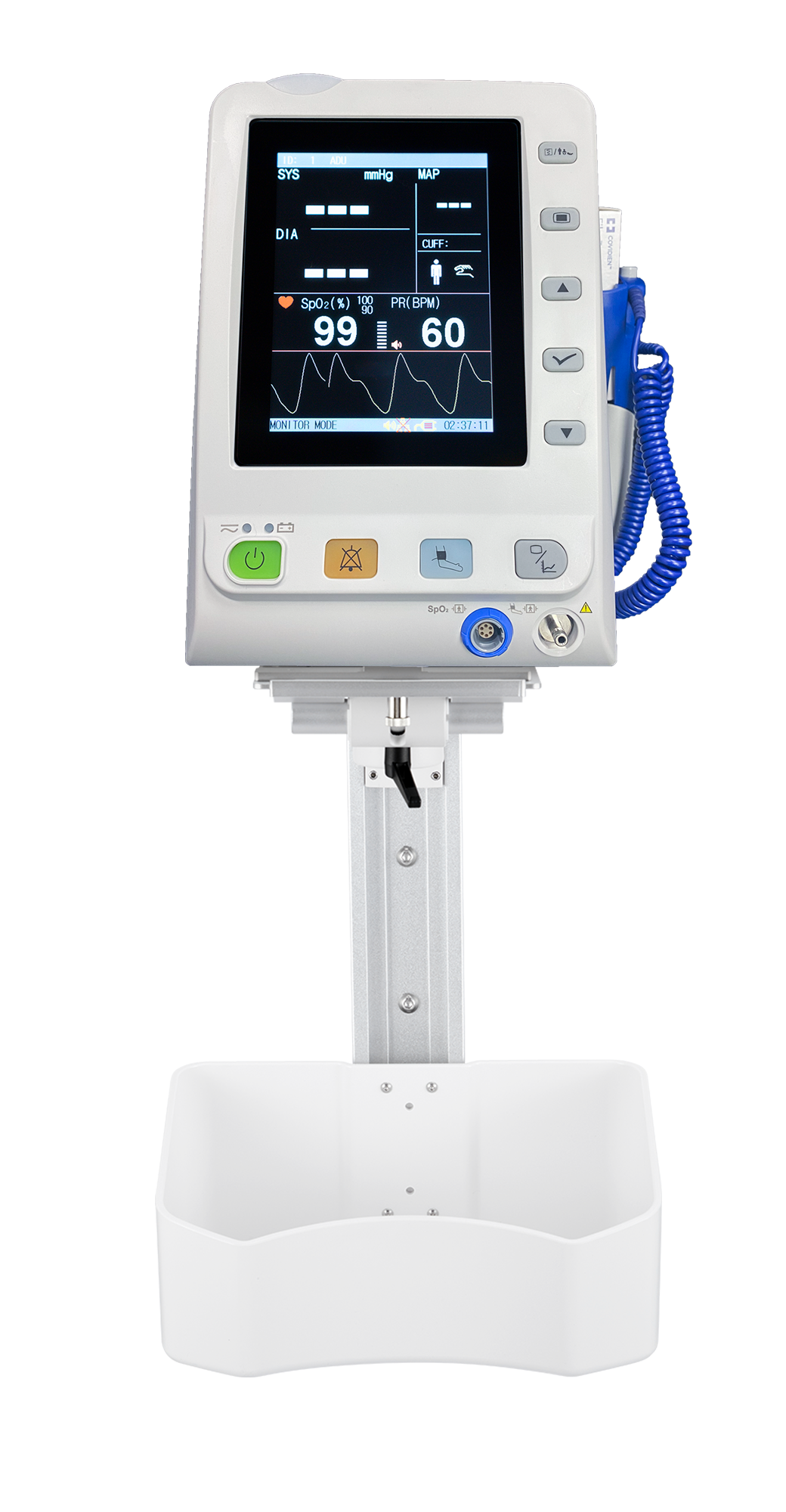

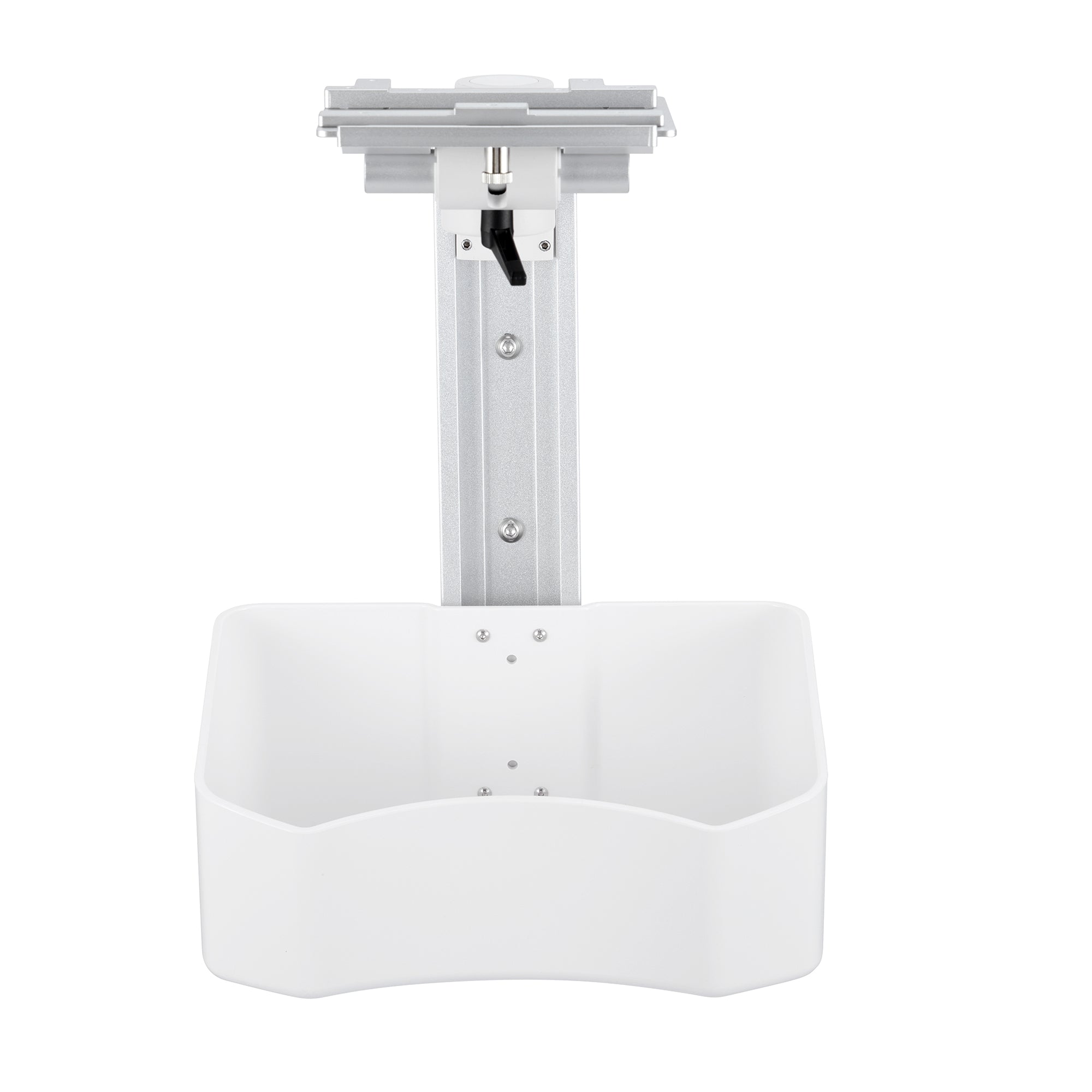

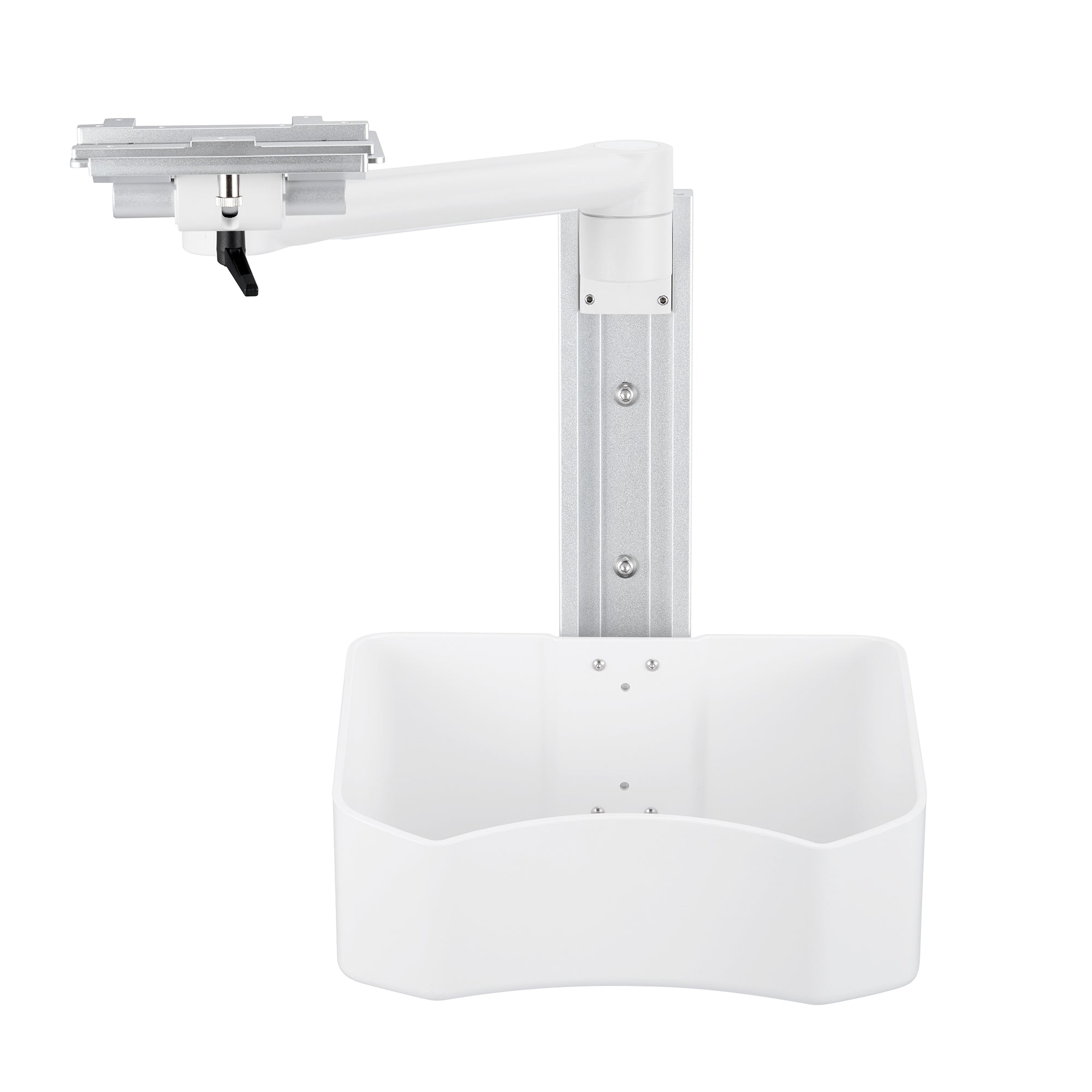

Edan M3 Wall Mount Bracket

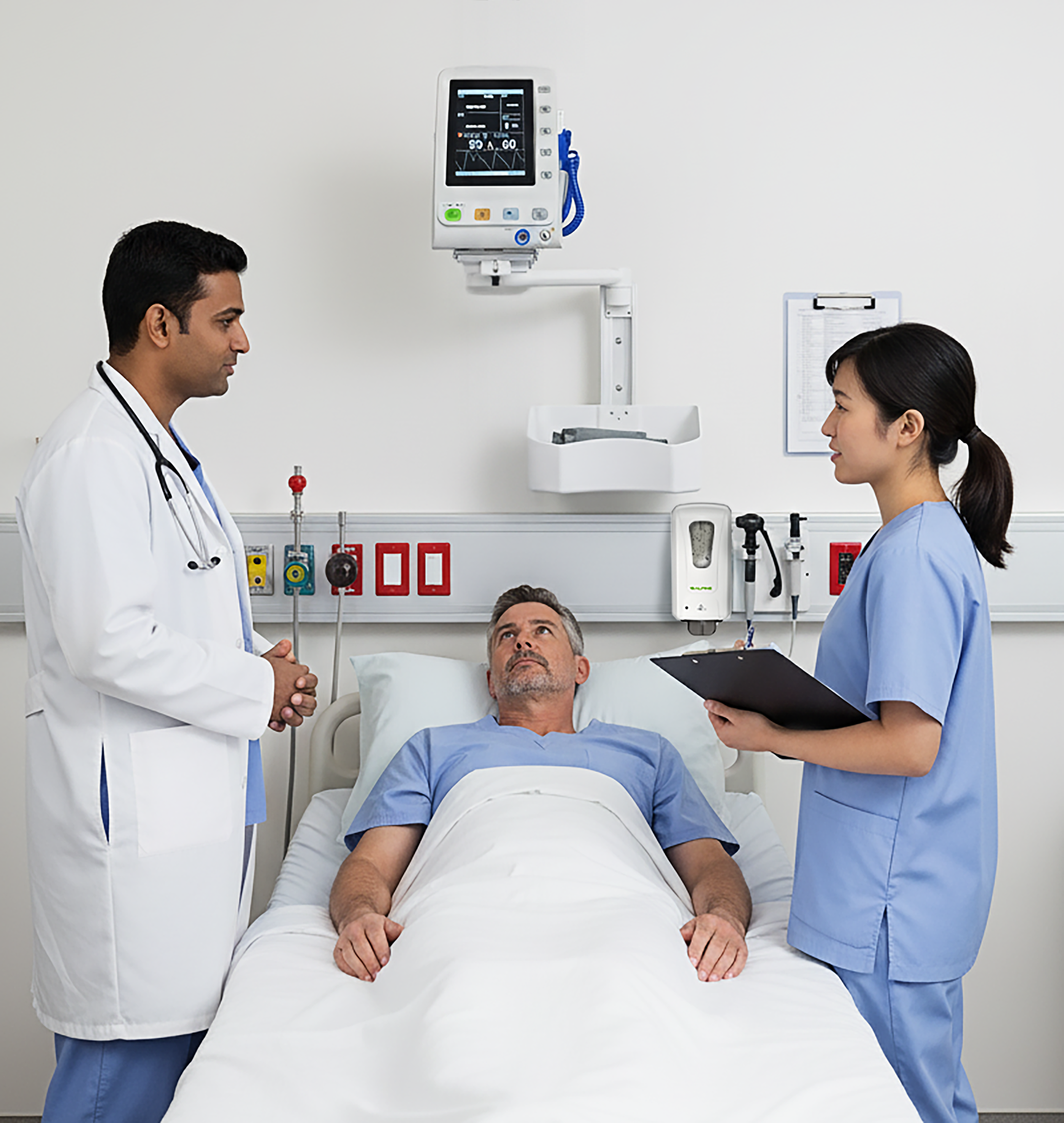

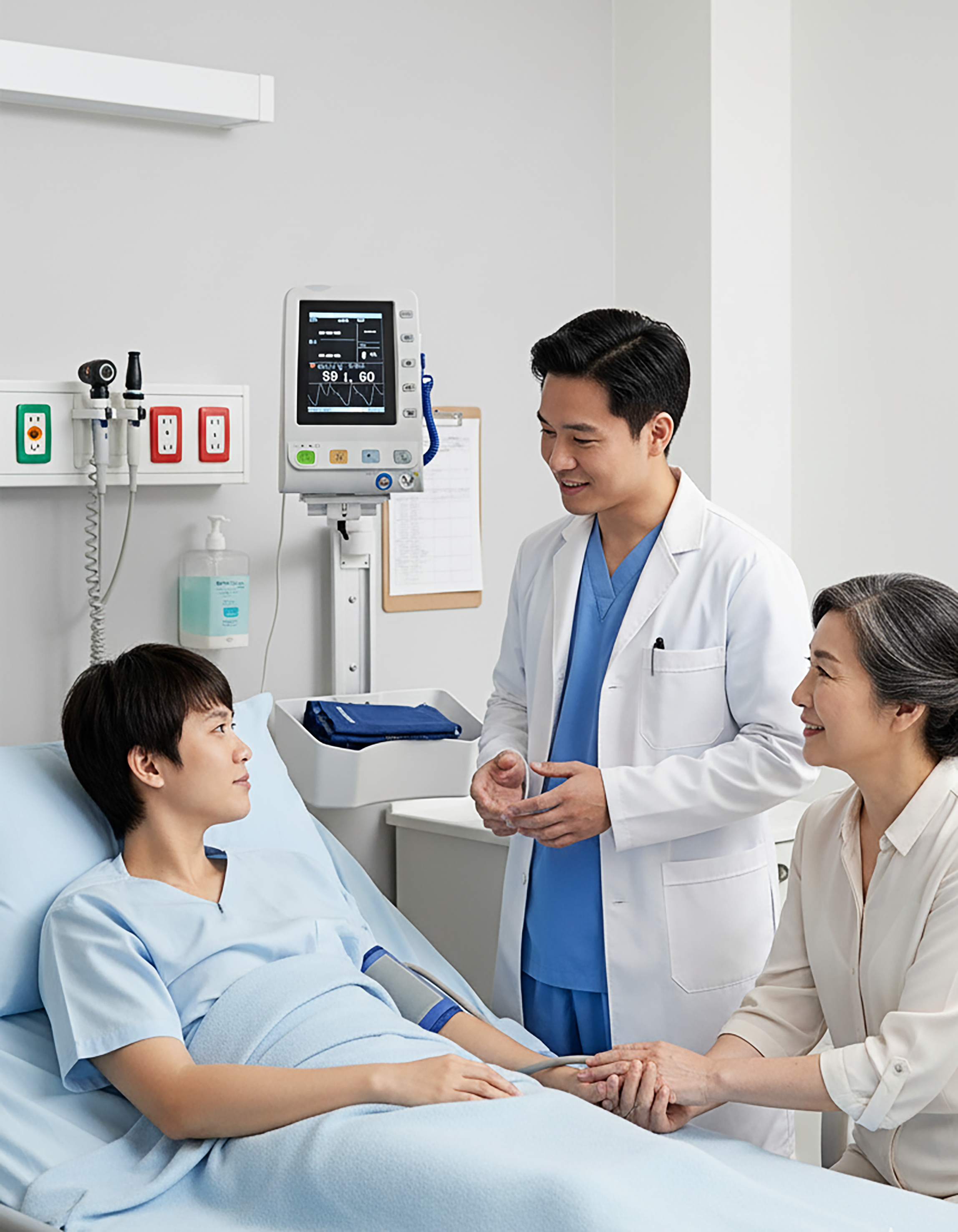

Our Vital Signs Monitor Wall Mounted Series provides secure, stable, and ergonomic placement for patient monitoring devices in clinical environments where space efficiency and workflow organization matter. This collection includes four configurations to match leading monitor platforms: Welch Allyn Connex Spot Monitor, Edan “M” and “iM” series, Edan M3 Vital Signs Monitors, and Viva Diagnostics Omni Spot units. Each bracket is built from durable aluminum and plastic to withstand daily clinical use and features smooth vertical maneuverability so staff can raise or lower the monitor to the optimal working height. Once positioned, the bracket locks firmly into place, ensuring stability during readings and interaction.

All brackets are precisely model matched for a proper fit and feature a plastic accessory basket to keep frequently used components, such as cuffs and probes, within immediate reach. We offer specialized brackets compatible with major product lines, including Welch Allyn, Edan Monitor (M, iM, and X-series), Edan M3s, and the Omni Spot unit. Upgrade your workflow today and keep critical components organized, accessible, and ready when you need them most.

SKU: ADIME912-WM-06
Features

Compatibility: Each bracket is built to match the
mounting interface of its respective monitor series to ensure secure and stable
attachment:

·
Welch Allyn Bracket: Connex Spot Monitor &
4400 series

·
Edan Monitor Bracket: M, iM, and X series models

·
Edan M3 Bracket: M3 / M3A / M3B / iM3 / iM3S

·
Omni Bracket: Viva Diagnostics Omni Spot

Adjustable: Monitor height can be smoothly raised or
lowered as needed for patient evaluation, then secured into position for use.

Support Frame: Aluminum and plastic construction
provides a strong, impact-resistant structure suitable for ongoing clinical
environments.

Accessory Basket: Integrated plastic basket keeps
cuffs, probes, and small accessories immediately accessible where needed.

Compact: Frees floor space to reduce clutter and
prevent tangled wires in busy healthcare environments.

Streamlined: Structural layout supports neat routing
of power and data cables to reduce tangling and snag points.

Sold Separately: Bracket system is supplied
independently for use with the existing facilities’ applicable monitoring
equipment.
Specs

Compatibility:

  • Edan Vital Signs Monitors: M3 / M3A / M3B / iM3 /
    iM3S

Materials: Aluminum and Plastic

Weight: 8.3 lbs.

Overall Dimensions: 18.1"
L x 4.3” W x 13” H

Height Adjustment: 5” – 13”

Length of Arm: 9.8”

Plastic Basket Dimensions: 5”
H x 12.2” W x 7.8” D

Accessory Storage: Rear plastic storage basket included

Mount Type: Wall-mounted track bracket

Cable Management: Built-in routing channel

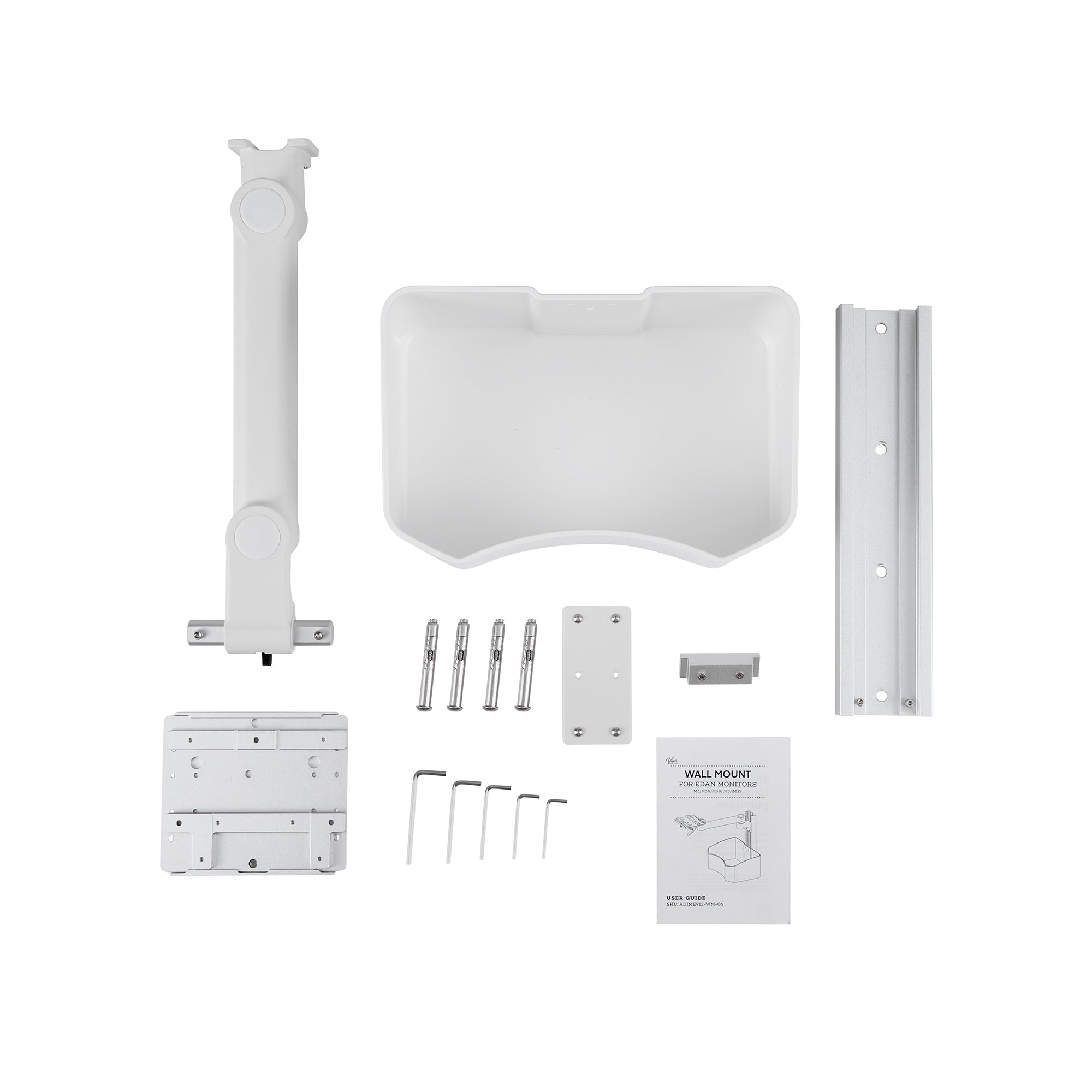

Hardware: Standard mounting hardware included

Monitors: Sold separately

Assembly Time: ~30 minutes
